A lot of people only notice a shutoff valve when something goes wrong. A filter needs service. A pump has to come out. A line starts leaking and you need water stopped fast, not after a scramble through the yard or mechanical room.
That's where a 2 Inch PVC Ball Valve stops being a minor fitting and starts acting like a control point for the whole system. If it's the right valve, installed the right way, it gives you clean isolation, faster service, and fewer surprises. If it's the wrong valve, or if it was glued in carelessly, it can become the source of the leak, the restriction, or the seized handle that turns a simple maintenance visit into a much bigger repair.
In water treatment work, this part shows up constantly. It sits on bypass loops, filter manifolds, pump lines, and equipment isolation points. Clients often focus on tanks, membranes, or media, but the valve is what lets the rest of that equipment be maintained without turning the whole property into a jobsite.
Your Water System's Unsung Hero
A shutoff valve earns its keep in the worst moments.
You find water where it shouldn't be. A housing needs to come apart. A UV chamber, softener, or cartridge system has to be serviced. In that moment, nobody cares that the valve looked fine on the shelf. What matters is whether it turns smoothly, seals fully, and lets you isolate one part of the system without shutting down everything else.
A 2 inch pvc ball valve often fills that role in larger residential lines, irrigation branches, pool-related plumbing, and light commercial water systems. It's large enough to handle substantial flow, but still common enough that you'll see it in everyday service work rather than only in specialized industrial setups.
Why this valve matters more than people think
The valve controls access.
If you need to replace a filter tank, clean a strainer, remove a pump, or bypass a treatment system, this is the part that makes the job manageable. A good valve protects equipment and property because it gives you a reliable stop point. A poor valve creates two problems at once. You still have the original service issue, and now you also have a valve you can't trust.
Practical rule: Treat every shutoff valve like future access equipment, not just a part to complete today's install.
That mindset changes how you choose and install it. You stop asking only, “Will it fit?” and start asking better questions:
- Can it be serviced later
- Will it restrict flow when fully open
- Can the line be taken apart without cutting pipe
- Will the material handle the actual water conditions
- Is the valve likely to stay operable after years in place
What works in the field
For clean water systems, PVC ball valves can be an excellent choice when the application is right. They resist corrosion, they're familiar to installers, and they pair well with common water treatment layouts.
What doesn't work is assuming all 2-inch valves are basically the same. They aren't. Body style, port size, connection type, orientation, and installation technique all change how the valve performs over time.
That's the difference between a system that stays easy to maintain and one that becomes difficult the first time service is needed.
Deconstructing the 2 Inch PVC Ball Valve
Think of a ball valve like a light switch for water. Turn the handle one way and water flows. Turn it a quarter turn and the flow stops. That simple action is the reason these valves are used so often in plumbing and water treatment systems.
The simplicity is real, but the details matter. “2 inch,” “PVC,” and “ball valve” each tell you something important about what the part does and where it belongs.
What 2 inch actually means
The 2 inch size refers to the pipe size the valve is built to match. In practice, that puts it in the mid-size range for water shutoff work. It's much more than a tiny point-of-use valve, but it's still common in property-level plumbing and treatment systems.
One industrial flow reference lists a 2-inch ball valve with a fully open Cv of 440, compared with Cv 95 for 1 inch and Cv 260 for 1½ inch, which shows how much more throughput a 2-inch valve can support when fully open according to this ball valve flow-rate reference. That same reference also notes that ball valves up to 2 inches are commonly available in single-, two-, or three-piece designs, which helps explain why this size became a standard option for liquid on/off control.
The practical takeaway is simple. When a system needs to move a lot of water without choking the line, 2 inches is a very common stopping point before you move into larger and less convenient hardware.
Why PVC is useful and where it has limits
PVC is popular because it's lightweight, corrosion-resistant in water applications, and straightforward to work with. For many water lines, especially where the fluid is cool and the environment isn't especially aggressive, PVC does the job well.
But PVC is not a universal answer. It has temperature limits, and those limits matter. If the line sees hotter water or conditions outside normal water-service expectations, another material may be the safer choice.
That's one of the most common mistakes I see from new clients. They assume the material decision is secondary. It isn't. The valve body has to match the service conditions, not just the pipe size.
If the line conditions are wrong for PVC, a perfectly installed PVC valve is still the wrong valve.

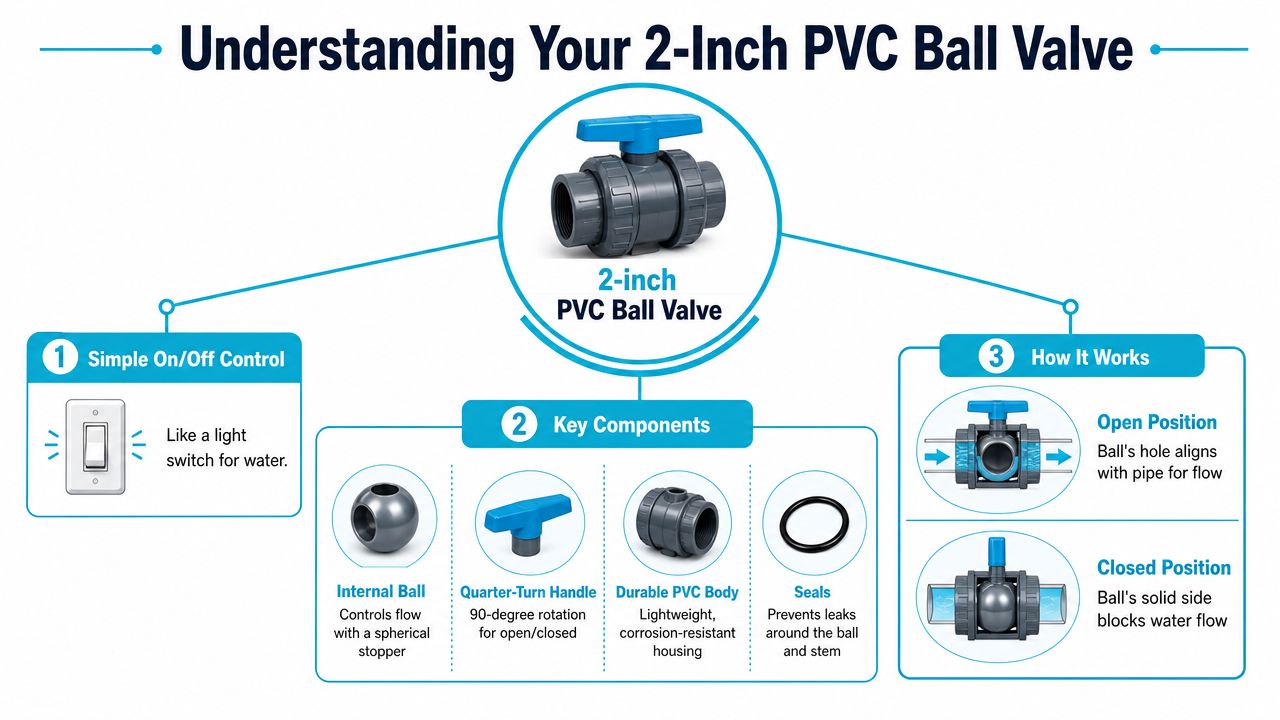

How the ball valve mechanism works
Inside the valve body is a spherical ball with a hole through its center. When the hole lines up with the pipe, water passes through. When the solid side rotates across the line, water stops.
That's why the handle only needs a quarter turn. The movement is fast, and the open or closed position is easy to read at a glance.
The basic parts usually include:
- Valve body for the outer housing
- Ball for the actual flow path
- Seats and seals that help prevent leakage around the ball
- Stem and handle that transfer your hand movement into the quarter-turn action
Why this design is so common
For water shutoff duty, ball valves are popular because they're direct. You don't spend time cranking a wheel through many turns. You don't guess whether the valve is mostly open or mostly closed. You move the handle and you know the status.
That makes them practical in real maintenance situations:
- Filter isolation when a cartridge housing or tank must come offline
- Pump service when suction or discharge lines need to be shut down quickly
- Bypass loops where one valve position feeds treatment and another routes around it
- Emergency shutoff when speed matters more than finesse
A new client usually doesn't need all the internal terminology. They need to know what the valve is supposed to do and why one version performs better than another. Once you understand the quarter-turn function and the meaning of the size and material, you can make much better choices on the valve itself.
How to Select the Perfect PVC Ball Valve
Most selection mistakes happen because people shop by size only. They see “2 inch,” confirm that it matches the pipe, and stop there. That's how you end up with a valve that fits the line but doesn't fit the job.
For a 2 inch pvc ball valve, the key decisions usually come down to serviceability, flow path, body style, and connection method.
Start with the question that matters most
Ask this first: Will this valve ever need to come out, be replaced, or sit next to equipment that needs service?
If the answer is yes, lean toward a true union style. If the answer is no and space is tight, a compact valve may be acceptable. But “acceptable” and “best choice” are not the same thing.
A compact valve often works where budget and footprint drive the decision. A true union valve works better where maintenance is expected. That includes softeners, filter banks, UV systems, pump protection lines, and bypass arrangements.
True union versus compact
Here's the field difference.
A true union valve can usually be removed from the line without cutting pipe because the union ends separate from the body. That matters when the valve fails, when nearby equipment has to be replaced, or when a system is reconfigured later.
A compact valve takes less space and can cost less up front, but it usually commits you to more labor later. If it leaks or seizes, replacement often means cutting and rebuilding around it.
The cheaper valve often becomes the expensive valve when the line has to be rebuilt around a part that should have been removable.
Full-port versus compact-port
This choice affects performance, not just appearance.
For 2-inch PVC ball valves, full-port and compact-port geometry change hydraulic behavior in a meaningful way. A full-port valve keeps the bore close to the pipe's internal diameter, which helps reduce head loss and preserve flow capacity. Compact designs save space but typically add flow resistance and increase pressure drop at the same flow rate, as explained in this 2-inch PVC ball valve product guidance.
That's why full-port valves are usually the smarter pick for:
- Filtration bypasses where you don't want the open valve acting like a bottleneck
- Service manifolds that already have enough fittings and turns
- Pump suction and discharge protection where friction loss matters
- Higher-demand water lines serving multiple fixtures or process points
A practical comparison
| Feature | Best For | Consideration |
|---|---|---|
| True union body | Filter systems, pumps, bypass loops | Easier future removal and service |
| Compact body | Tight spaces, simpler lines | Often less convenient to replace later |
| Full-port design | Higher flow lines, low head-loss layouts | Usually takes more space than compact-port |
| Threaded ends | Locations where dry-fit disassembly is useful | Threads need care to avoid stress or leaks |
| Slip ends | Permanent solvent-weld installs | Clean technique matters because bad glue work causes failures |
Connection choices and system fit
For water treatment installations, slip connections are common because they create a clean solvent-weld joint and keep the assembly compact. They work well when the layout is fixed and properly supported.
Threaded connections can make sense where you need more modular assembly, but threads in plastic have to be handled carefully. Cross-threading, over-tightening, and poor alignment can all create trouble. Plastic threads aren't forgiving.
If you're still deciding what kind of broader treatment setup belongs on the property, it helps to start with a system-level view rather than choosing components in isolation. A guide on finding the best water treatment systems can help frame the bigger decision before you lock in valve layout and piping details.
Use selection logic, not shelf logic
A valve should match the work it has to do.
Choose a serviceable valve when equipment nearby will need routine attention. Choose full-port when preserving flow matters. Choose PVC only when the water conditions fit the material. And choose a connection style that matches how permanent the assembly should be.
That's how you avoid the common result of “it fit, but it wasn't the right valve.”
Practical Applications in Water Systems
A 2 inch pvc ball valve shows its value when it's part of a layout that has to be serviced without drama. On paper, it's just a shutoff. In the field, it becomes the difference between a quick isolation job and a building-wide disruption.
Whole-home treatment bypasses
One of the most common real-world uses is a bypass arrangement around treatment equipment. If a softener, carbon system, or large filtration assembly needs service, the valves let water keep moving to the property while that equipment is isolated.
That matters in occupied homes and busy buildings. Nobody wants to shut down the entire water supply just to swap a component or inspect a connection.
A practical example is a line entering a treatment area, splitting through a treatment loop, and then returning to the main line. Shut the isolation valves on the equipment side, open the bypass path, and the property still has water while service happens.
Pump and equipment isolation
The next common use is around pumps, UV equipment, and large filter housings or tanks. If a pump needs maintenance, a valve on the approach line and another on the leaving side keep the work contained.
This is also where clients discover whether they bought the right style of valve. A compact valve in the wrong place can turn a straightforward pump removal into a piping rebuild. A removable valve body and a clean layout make the same repair much easier.
Commercial and light business setups
In restaurants, offices, and similar buildings, these valves often appear anywhere a water system needs controlled isolation without introducing excessive flow restriction. Think service manifolds, branch isolation, pretreatment sections, and utility equipment lines.
If hot water equipment is involved, it's smart to step back and make sure the valve material still matches the service. In situations tied to heated plumbing, leak diagnosis, or mechanical-room work, a local specialist in Boerne water heater repair can be a useful reference for understanding the broader plumbing issues around temperature, pressure, and service access.
Bigger isn't always better
A major mistake is assuming the largest convenient valve is automatically the best choice. It isn't.
Available retail guidance shows many 2-inch PVC ball valves are sold for irrigation, wastewater, swimming pools, and water supply, often as compact, full-port, or Schedule 40 styles with pressure ratings around 150 PSI, but practical discussions around these products show users often run into questions of serviceability, handle-area leakage, orientation, and design expectations rather than size alone, according to this 2-inch PVC valve application overview.
That lines up with what happens in real installations. The actual problem often isn't “Do I need a 2-inch valve?” It's “Do I need this material, this body style, and this service access point?”
When PVC is not the right answer
PVC works well in many cool-water applications. It's often a strong fit for:
- Cold-water treatment lines
- Irrigation and utility water
- Pool-related circulation plumbing
- General isolation on water supply systems within rated conditions
It's not the automatic choice if the line sees high temperatures, harsh chemical exposure, repeated thermal swings, or a duty cycle that demands heavier construction.
In those cases, changing material or valve style is usually smarter than forcing PVC into a job it wasn't meant to handle. Good system design isn't about making one part work everywhere. It's about choosing the right part for the actual environment.

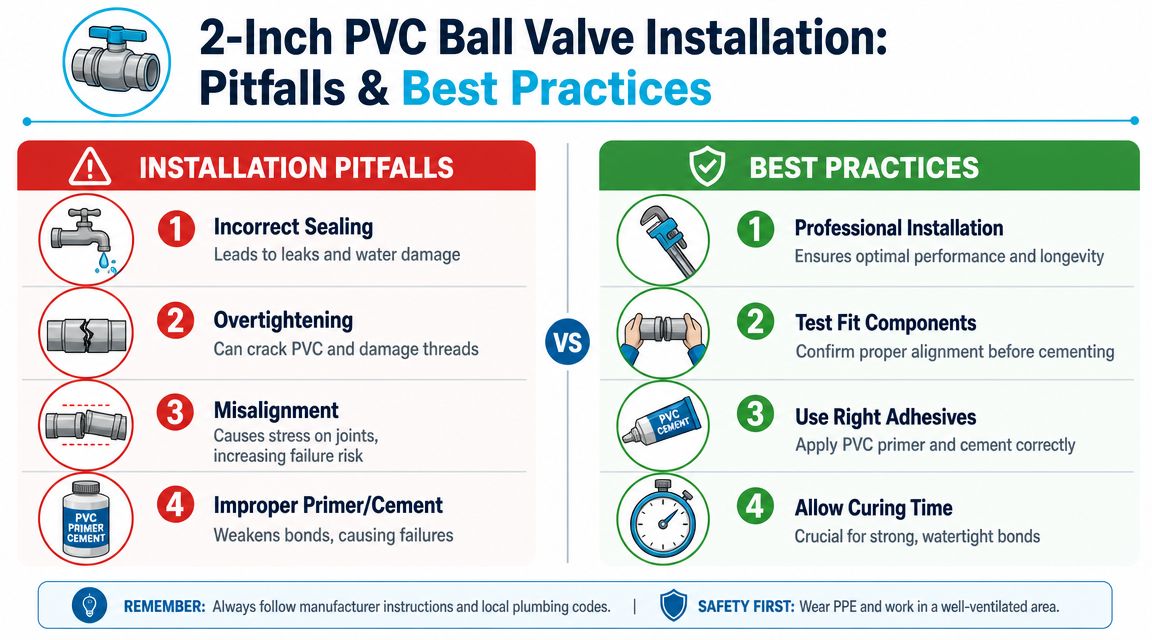

Installation Pitfalls and Best Practices
Most valve failures blamed on “bad parts” are installation failures.
That's especially true with PVC. The material is forgiving in some ways, but not in the ways that matter most during assembly. A rushed glue joint, a stressed pipe run, or an over-tightened union can give you a valve that looks fine on day one and starts leaking or binding later.
The mistake people make first
Many installers focus on getting the valve into the line and forget they are also protecting a moving internal mechanism. With a ball valve, glue control matters. If solvent cement gets where it shouldn't, the valve may stiffen, seize, or fail before the system has much age on it.
Search results and installation guidance for 2-inch PVC ball valves consistently warn about a few specific problems: cement should not drip into the operating mechanism, some double-union valves are easier to install if the union ends are removed and cemented separately, union nuts should be tightened only hand-tight, and flow-direction arrows matter because orientation can affect whether a valve is serviceable under pressure, as shown in this installation video guidance for PVC ball valves.
That's the kind of detail product listings rarely explain, but it's what prevents callbacks.
Best practices that actually matter
A clean installation usually follows a disciplined sequence.
Dry-fit first
Confirm alignment before primer or cement comes out. If the valve body has to be pulled into place by the pipe, the line is already under stress.Support the piping
Don't let the valve carry pipe weight or misalignment. PVC under constant side load tends to tell you later, not immediately.Control primer and cement
Apply enough for the joint, not so much that it runs into places it shouldn't. Keep the internal mechanism clean.Separate union ends when appropriate
On double-union styles, it's often cleaner to remove the ends, cement them to the line, and then reassemble the valve body once the joints are ready.Tighten unions by hand
A union nut isn't a threaded pipe fitting. Over-tightening can damage components and create leaks rather than prevent them.
Field note: If a valve only lines up when you force it, stop and rebuild the pipe run. Stress is already built into the system.
A quick visual reference
For a simple install overview, this video gives a helpful visual example of valve handling and layout in a plumbing context.
DIY versus professional installation
Many property owners often underestimate risk. The valve itself may not be expensive compared with the system around it, but the consequences of installing it poorly can be.
A bad install can lead to:
- Leaks at the joint from poor solvent technique
- Leaks at the union from over-tightening or dirty sealing surfaces
- Stiff operation because cement contaminated the mechanism
- Premature cracking from pipe stress or misalignment
- Difficult service later because orientation blocked access or made pressure-side removal unsafe
Professional installation isn't valuable because the valve is mysterious. It's valuable because these mistakes are easy to make and expensive to correct after the system is live.
If the valve is part of a larger treatment buildout, equipment planning matters just as much as the plumbing details. Homeowners comparing broader project options often benefit from a practical look at reverse osmosis system installation cost so they understand where installation quality fits into total system value.
What good installation looks like
A properly installed 2-inch valve should turn smoothly, sit in a neutral pipe run, remain accessible, and allow nearby equipment to be serviced without cutting the assembly apart.
That's the standard worth aiming for. Not just “it doesn't leak today,” but “it will still be serviceable when someone has to work on this line later.”
Long-Term Care and Troubleshooting Guide
A 2 inch pvc ball valve doesn't need constant attention, but ignoring it for years is how small issues become emergency issues. Most of the maintenance is simple. The key is doing it before the handle freezes or a drip becomes a repair visit.
A practical maintenance routine
The best habit is to cycle the valve periodically. Open it fully. Close it fully. Then return it to the operating position. That helps prevent the ball and seals from sitting untouched for too long.
You should also inspect the area around the valve during normal system checks.
Look for:
- Moisture around the stem or handle area
- Drips at union connections
- Signs of pipe stress near the body
- A handle that feels noticeably stiffer than before
- Discoloration or wear that suggests heat exposure or environmental damage
Troubleshooting common problems
| Problem | Likely cause | Practical response |
|---|---|---|
| Handle is hard to turn | Scale, lack of movement, internal contamination | Cycle the valve gently. Don't force the handle with excessive leverage |
| Leak at union | Dirty sealing surface, poor alignment, over-tightening | Depressurize, inspect sealing surfaces, reassemble carefully |
| Drip near handle area | Stem seal wear or design issue | Evaluate whether the valve design allows adjustment. If not, replacement may be the smarter path |
| Repeated trouble in service | Wrong valve style for the application | Upgrade to a more serviceable design rather than repeating the same repair |
A valve that keeps needing attention is often telling you the application choice was wrong, not just the installation.
Pressure and temperature reality
Pressure ratings only mean something within the manufacturer's limits. A major North American specification set shows true-union PVC ball valves from 1/2 inch through 2 inch commonly rated at 235 psi for water at 73°F (23°C), while larger sizes in that same family often step down to 150 psi, according to the Spears true-union ball valve datasheet.
The practical lesson is that temperature and diameter both affect allowable working pressure. If water temperature rises, PVC's pressure margin drops. Unexpected leaks or body problems sometimes trace back to service conditions that were outside what the valve was meant to handle.
If a valve leak appears tied to a broader plumbing issue rather than an isolated fitting problem, it can help to review how leak specialists approach system diagnosis. A service page on Total Plumbing & Hot Water leak services is a useful example of the kinds of leak scenarios that need system-level attention rather than a quick patch.
When replacement is the better call
Don't keep fighting a valve that has become unreliable. If the handle binds, the body is stressed, or the same leak returns after correction, replacement is often the right decision.
That's especially true when the valve sits at an important isolation point. A shutoff you can't trust isn't doing its job, even if it still looks mostly intact.
Ensuring System Integrity with the Right Choices
A water system rarely fails at the most expensive component first. It usually fails at the small control points, the joints, the supports, and the shutoff hardware people assumed was simple.
That's why the right 2 inch pvc ball valve matters. The best result comes from matching the valve to the application, choosing a serviceable design where maintenance is expected, protecting flow with the right port style, and installing it with care. Those choices prevent the most common headaches: seized handles, leaks at the wrong time, unnecessary pressure loss, and expensive rework.
For many properties, the valve is part of a larger treatment picture. If you're weighing upgrades across the whole plumbing system, it helps to think beyond a single component and compare options for the best water filtration system for whole house. The valve still matters, but it should support a well-designed system rather than compensate for a poor one.
Good water systems stay reliable because someone made good decisions early. The valve size, the material, the service access, and the installation method all count. Get those right, and the rest of the system becomes easier to live with and easier to maintain.
